  • Construction - Construction Details

STANDARD (SFS Type)

B-Flex (SFS TYPE) : Standard "B-Flex” flexible metallic conduits consists of a combination of two layers of steel tapes and one layer of fiber/craft paper tape. The outer layer of zinc coated steel tape or lead coated steel tape,the intermediate layer of fiber/craft paper, and the inner layer of zinc coated steel tape or lead coated steel tape are used. The width of these tapes depend upon the diameter of the conduit and is tightly wound in spiral,overlapping each other to form a continuous flexible pipe. Double thread screws are applied in spiral which is reverse to direction of layers,thus preventing the winding of the layers from becoming loose. Threads are automatically formed during the process.

B-Flex Item No. Standard Size of Conduit Box Connector End Bushing Combination Connector Junction Box Connector
SFS 112 1/2" BFBC 112 BFEB 112 BFCC 112 BFJB 112
SFS 120 3/4" BFBC 120 BFEB 120 BFCC 120 BFJB 120
SFS 125 1" BFBC 125 BFEB 125 BFCC 125 BFJB 125
SFS 132 1 1/4" BFBC 132 BFEB 132 BFCC 132 BFJB 132
SFS 138 1 1/2" BFBC 138 BFEB 138 BFCC 138 BFJB 138
SFS 150 2" BFBC 150 BFEB 150 BFCC 150 BFJB 150

CONSTRUCTION (SFA Type)

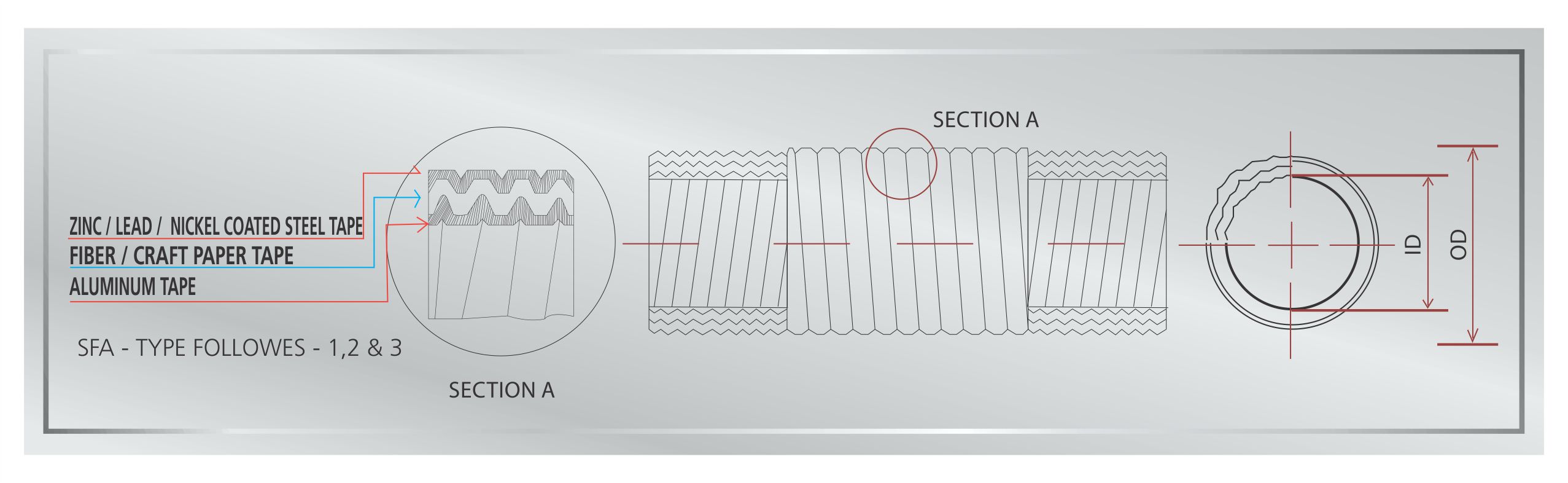

B-Flex (SFA TYPE) : Standard ‘B-Flex” flexible metallic conduits (SFA type) consists of a combination of three layers i.e; the outer layer of zinc coated steel tape or lead coated steel tape,the intermediate layer of fiber/craft paper,and the inner layer of aluminium tape are used. The width of these tapes depend upon the diameter of the conduit and is tightly wound in spiral,overlapping each other to form a continuous flexible pipe. Double thread screws are applied in spiral which is reverse to direction of layers,thus preventing the winding of the layers from becoming loose. Threads are automatically formed during the process.

B-Flex Item No. Standard Size of Conduit Box Connector End Bushing Combination Connector Junction Box Connector
SFA 112 1/2" BFBC 112 BFEB 112 BFCC 112 BFJB 112
SFA 120 3/4" BFBC 120 BFEB 120 BFCC 120 BFJB 120
SFA 125 1" BFBC 125 BFEB 125 BFCC 125 BFJB 125
SFA 132 1 1/4" BFBC 132 BFEB 132 BFCC 132 BFJB 132
SFA 138 1 1/2" BFBC 138 BFEB 138 BFCC 138 BFJB 138
SFA 150 2" BFBC 150 BFEB 150 BFCC 150 BFJB 150

Major Specification

B-Flex Item No. SIZE (Inches) INNER DIA (mm) OUTER DIA (mm) TOLERANCE on Outer Dia (mm) STANDARD LENGTH PER ROLL (Meter) APPROXIMATE WEIGHT (Kg./Meter) MATCHING RIGID CONDUIT SIZE (Inches)
SFS 112 1/2 12.5 18.2 +/- 0.2 50 0.31 1/2
SFS 120 3/4 19.1 24.3 +/- 0.2 50 0.46 1/2
SFS 125 1 25.4 31.0 +/- 0.2 25 0.72 3/4
SFS 132 1 1/4 32.8 38.1 +/- 0.3 25 0.84 1
SFS 138 1 1/2 38.2 43.8 +/- 0.4 15/20 1.30 1 1/4
SFS 150 2 52 58.5 +/- 0.5 15/20 1.62 1 1/2

NOTE

Note : Special “B-Flex” conduits (SFS Type) is also available on special requests.This consists of outer layer of zinc coated steel tapes,intermediate layer of zinc coated steel tapes and inner layer of fiber/craft paper. The conduits are also available with PVC coating i;e SFS-P Type and SSF-P Type.

Other kind of metallic tube using copper or aluminium strips is also available. In order to meet market and customer demands,the conduits and fittings in different materials and techniques are available on special customer request.

Accessories Portfolio

B-Flex accessories made out of aluminium casting/zinc coated steel/chromium or nickel plated brass specially designed and manufactured for B-Flex metallic conduit having earthing provision with machine screws,which provides a perfect grip on the conduit.

  • Made out of Aluminum casting used for Termination of conduits in Terminal Box, Motors Connections.
  • Made out of Zinc plated Steel used for termination of conduit pipe. it protect the Cable during laying also provides the strength to the conduit end.
  • Made out of Aluminum casting used to join the pieces of the B-Flex conduit of same size or different size.
  • Made out of Aluminum casting used as a junction Box for Different direction of cabling and wiring.
